YOUR #1 SOURCE FOR DILLON QUICKCHECK

Over 80 years of force measurement expertise

Help me find the right Dillon QuickCheck Cable Tension Meter

Answer a few short questions and we’ll tell you the best model for your needs.

Browse and compare Dillon QuickCheck Cable Tension Meters

Find specs and overviews of the four different types of Dillon QuickCheck Cable Tension Meters.

Get a quote on a Dillon QuickCheck Cable Tension Meter

Our experts can get you the right cable tension meter to meet your needs.

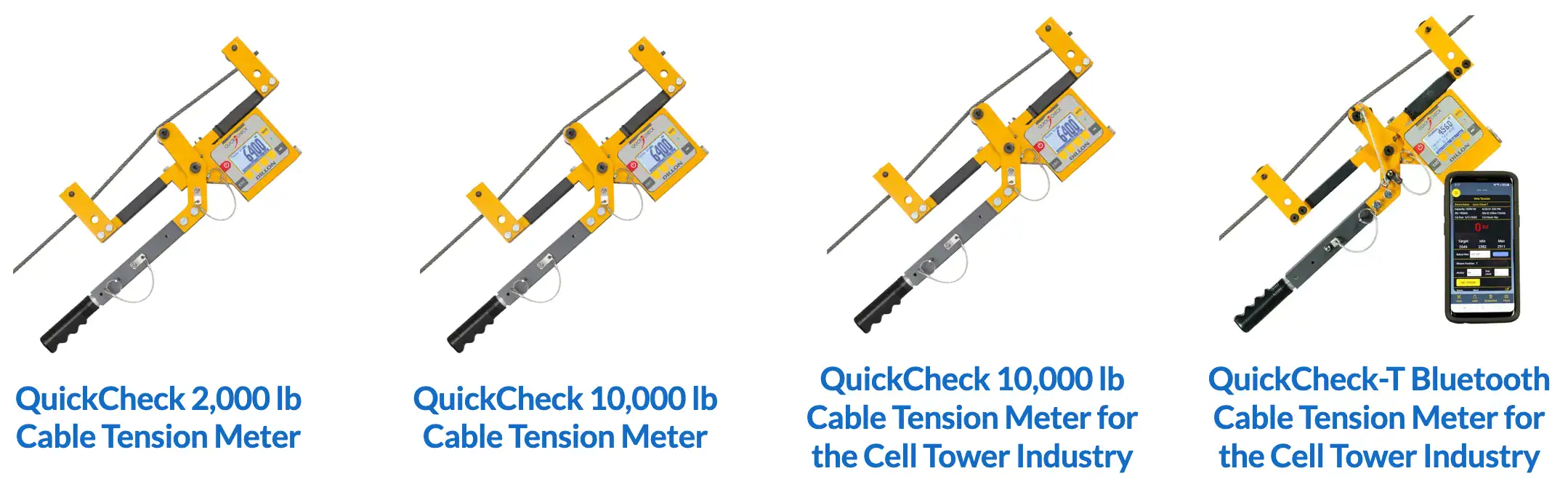

Dillon QuickCheck tension meters at a glance

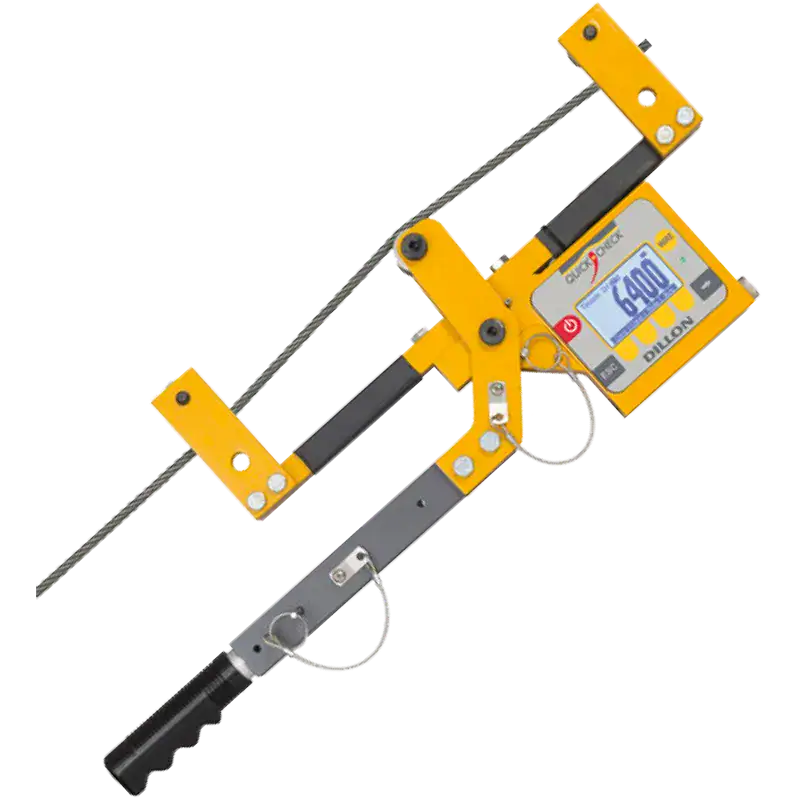

QuickCheck 2,000 lb Cable Tension Meter

QuickCheck 10,000 lb Cable Tension Meter

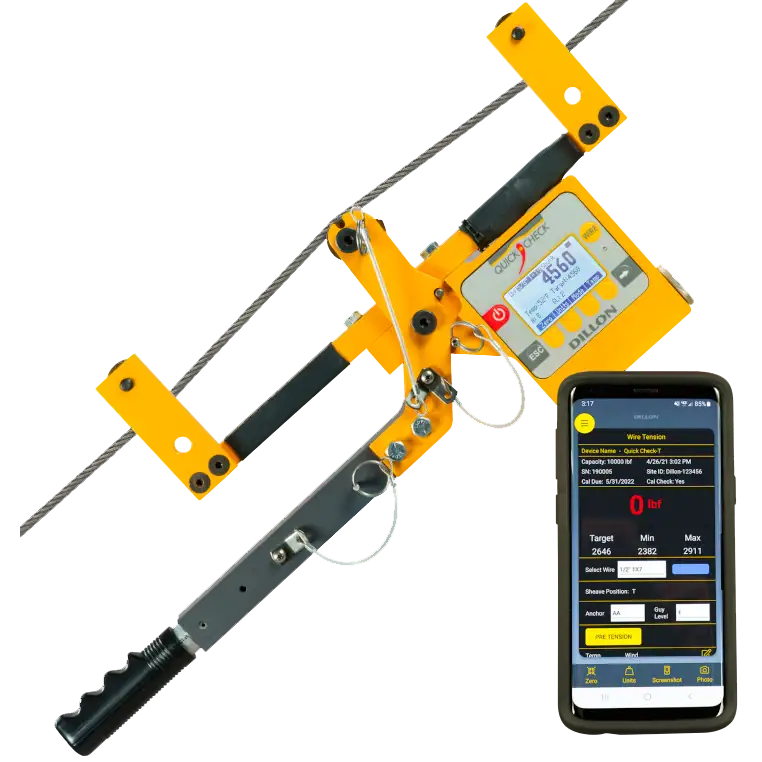

QuickCheck-T Bluetooth Cable Tension Meter

QuickCheck-T Bluetooth Cable Tension Meter for the Cell Tower Industry
Capacities2000 lb / 1000 kg10,000 lb / 4500 kg10,000 lb / 4500 kg10,000 lb / 4500 kg
CommunicationsRS232RS232Bluetooth®Bluetooth®
Report GenerationExcel via RS232Excel via RS232Utilize Bluetooth App to generate custom cell tower site reportUtilize Bluetooth App to generate custom cell tower site report
Quick-Check Pre-Calibrated to most popular Cell Tower Guy WiresNo (but can be custom calibrated)No (but can be custom calibrated)No (but can be custom calibrated)Yes
Rope CalibrationsUp to 20 (must be specified at time of order)Up to 20 (must be specified at time of order)Up to 20 (must be specified at time of order)Comes pre-calibrated to most popular cell tower guy wires
Cable Diameter Range3/16” to 1” / 4.75 mm to 25.4 mm3/16” to 1” / 4.75 mm to 25.4 mm3/16” to 1” / 4.75 mm to 25.4 mm3/16” to 1” / 4.75mm to 25.4mm
DisplayInformative Display:
Shows: Unit, Wire Type, Sheave & Battery
Informative Display:
Shows: Unit, Wire Type, Sheave & Battery
Bluetooth App and built-in display on deviceBluetooth App and built-in display on device
Carry CaseIP68 rugged carry caseIP68 rugged carry caseIP68 rugged carry caseIP68 rugged carry case
EnclosureSuitable for continuous outdoor useSuitable for continuous outdoor useSuitable for continuous outdoor useSuitable for continuous outdoor use
Units of MeasureLbf, kgf and NewtonsLbf, kgf and NewtonsLbf, kgf and NewtonsLbf, kgf and Newtons
Temperature Range-4° F to 158° F / -20° C to 70° C-4° F to 158° F / -20° C to 70° C-4° F to 158° F / -20° C to 70° C-4° F to 158° F / -20° C to 70° C
PowerTwo AA batteriesTwo AA batteriesTwo C batteriesTwo C batteries
Battery Life10Hz = over 250 hrs continuous 100Hz = over 100 hrs continuous10Hz = over 250 hrs continuous 100Hz = over 100 hrs continuous10Hz = over 250 hrs continuous 100Hz = over 100 hrs continuous10Hz = over 250 hrs continuous 100Hz = over 100 hrs continuous
Accuracy3% full scale3% full scale3% full scale3% full scale
Pass/Fail Tensioning ModeYesYesYesYes
Weight11 lb11 lb11 lb11 lb
REQUEST QUOTE

LEARN MORE
REQUEST QUOTE

LEARN MORE
REQUEST QUOTE

LEARN MORE
REQUEST QUOTE

LEARN MORE

Dillon QuickCheck tension meters at a glance

CapacitiesCommunicationsReport GenerationQuick-Check Pre-Calibrated to most popular Cell Tower Guy WiresRope CalibrationsCable Diameter RangeDisplayCarry CaseEnclosureUnits of MeasureTemperature RangePowerBattery LifeAccuracyPass/Fail Tensioning ModeWeight
QuickCheck 2,000 lb
Cable Tension Meter
2000 lb / 1000 kgRS232Excel via RS232No (but can be custom calibrated)Up to 20 (must be specified at time of order)3/16” to 1” / 4.75 mm to 25.4 mmShows: Unit, Wire Type, Sheave & BatteryIP68 rugged carry caseSuitable for continuous outdoor useLbf, kgf and Newtons-4° F to 158° F / -20° C to 70° CTwo AA batteries10Hz = over 250 hrs continuous 100Hz = over 100 hrs continuous3% full scaleYes11 lbREQUEST QUOTE
LEARN MORE
QuickCheck 10,000 lb
Cable Tension Meter
10,000 lb / 4500 kgRS232Excel via RS232No (but can be custom calibrated)Up to 20 (must be specified at time of order)3/16” to 1” / 4.75 mm to 25.4 mmShows: Unit, Wire Type, Sheave & BatteryIP68 rugged carry caseSuitable for continuous outdoor useLbf, kgf and Newtons-4° F to 158° F / -20° C to 70° CTwo AA batteries10Hz = over 250 hrs continuous 100Hz = over 100 hrs continuous3% full scaleYes11 lbREQUEST QUOTE
LEARN MORE
QuickCheck-T Bluetooth
Cable Tension Meter
10,000 lb / 4500 kgBluetooth®Utilize Bluetooth App to generate custom reportsNo (but can be custom calibrated)Up to 20 (must be specified at time of order)3/16” to 1” / 4.75 mm to 25.4 mmBluetooth App and in-built display on deviceIP68 rugged carry caseSuitable for continuous outdoor useLbf, kgf and Newtons-4° F to 158° F / -20° C to 70° CTwo C batteries10Hz = over 250 hrs continuous 100Hz = over 100 hrs continuous3% full scaleYes11 lbREQUEST QUOTE
LEARN MORE
QuickCheck-T Bluetooth
Cable Tension Meter
for the Cell Tower Industry
10,000 lb / 4500 kgBluetooth®Utilize Bluetooth App to generate custom cell tower site reportYesComes pre-calibrated to most popular cell tower guy wires3/16” to 1” / 4.75 mm to 25.4 mmBluetooth App and in-built display on deviceIP68 rugged carry caseSuitable for continuous outdoor useLbf, kgf and Newtons-4° F to 158° F / -20° C to 70° CTwo C batteries10Hz = over 250 hrs continuous 100Hz = over 100 hrs continuous3% full scaleYes11 lbREQUEST QUOTE
LEARN MORE

QuickCheck Cable Tension Meters 101

Like dynamometers, clamp-on tension meters measure the force of a load. But since dynamometers are in-line instruments, they can’t measure the tension of a cable that’s already connected on both ends. The clamp-on tension meter was developed for applications where the cable is already strung and in use.
