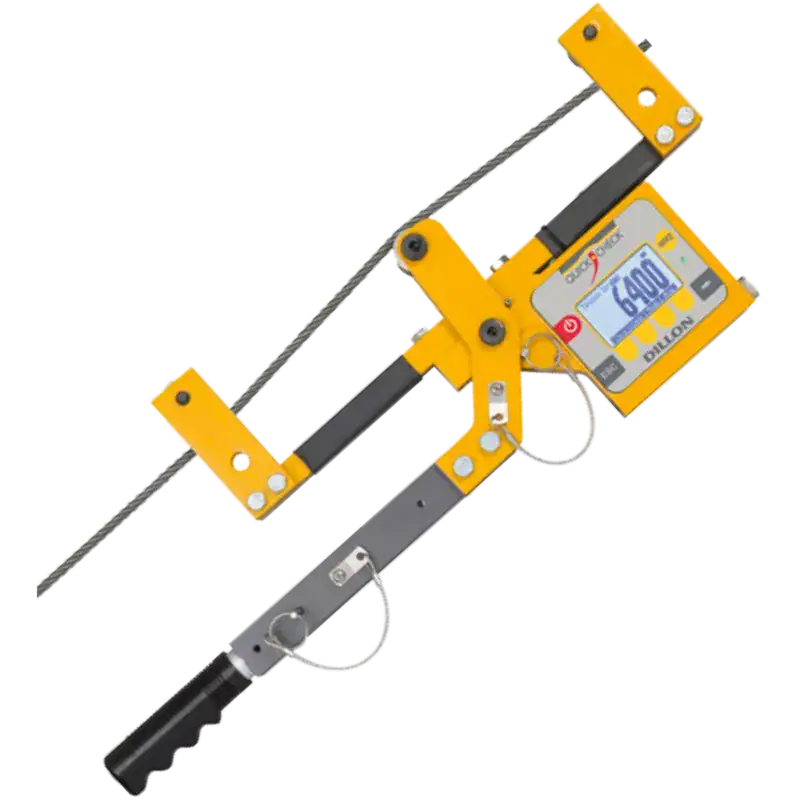

Dillon QuickCheck 2,000 lb Cable Tension Meter

The Dillon Quick-Check 2,000 lb cable tension meter is an industry-leading cable tension measuring device, featuring a simple design and unparalleled accuracy. Commonly used in applications like cell towers, bridges, elevators, fall arrest systems, utilities, and more, the Dillon Quick-Check is a proven tool to protect both your equipment and your personnel.

Product Specifications

Capacities

2000 lb / 1000 kg

Communications

RS232

Report Generation

Excel via RS232

Rope Calibrations

Up to 20 (must be specified at time of order)

Cable Diameter Range

3/16” to 1” / 4.75 mm to 25.4 mm

Display

Shows: Unit, Wire Type, Sheave & Battery

Carry Case

IP68 rugged carry case

Enclosure

Suitable for continuous outdoor use

Units of Measure

Lbf, kgf and Newtons

Temperature Range

-4° F to 158° F / -20° C to 70° C

Power

Two AA batteries

Battery Life

10Hz = over 250 hrs continuous 100Hz = over 100 hrs continuous

Accuracy

3% full scale

Pass/Fail Tensioning Mode

Yes

QuickCheck Pre-Calibrated to most popular Cell Tower Guy Wires

No (but can be custom calibrated)

Weight

11 lb

A FEW OF OUR SATISFIED CUSTOMERS

Advantages of the Dillon QuickCheck

Ease of Use

The Quick-Check tension meter can be placed, complete its measurement, and be removed, all in under five seconds. There are no complex lookup tables or conversion charts, meaning that you’ll get the data you need quickly and easily.

Rugged Digital Load Cell

The Quick-Check tension meter was built to last, and boasts sturdy engineering that will allow it to function for years, even in harsh industrial environments. Along with its durability, the digital load cell produces accurate and repeatable measurements you can rely on.

Pre-calibrated settings stored in the device’s memory

The operator can quickly select from up to 20 pre-calibrated wire sizes and types stored in the Quick-Check’s memory, saving your team valuable time. The Quick-Check can also graphically display current and target tension control limits in “tensioning mode.”

Dillon QuickCheck Tension Meter User Guide

Learn about the basic functions of the Dillon QuickCheck, including:

  • QuickCheck Overview
  • Quick Sheaves
  • QuickCheck Display
  • How to apply the QuickCheck

QuickCheck 101

New to Cable Tension Meters?

Learn everything you need to know about the different types of cable tension meters, how they work and why they’re critical to your business.

Expert Calibration, Repair & Rental Support

Maintain accuracy and operational readiness with calibration, repair, and rental support for cable tension meters.

Calibration and Repair Services

We offer quick, accurate and comprehensive calibration and repair services for all types of tension meters and force measurement products to ensure your business doesn’t have to miss a beat.

QuickCheck Rental Program

Need tension measurement devices, but not wanting to purchase them? You can rent Dillon Quick-Check 10,000lb tension meters on a monthly basis.

Frequently Asked Questions

Have questions about specifications, compatibility, or calibration requirements? Our team is ready to help. Contact us today.

Data from this QuickCheck 2,000 lb can be exported via RS232.

The QuickCheck 2,000 lb comes with 1 set of sheaves, If additional sheave sizes are required to accommodate your cable sizes. you can purchase additional sets.

All versions of the Dillon QuickChecks are digital.

It is recommended that the QuickCheck be calibrated every 12 months.

All QuickChecks include a durable IP67 waterproof case.

Visit the calibration and repair page of our website to submit an RMA form or our contact us through the contact form on the website.

All QuickChecks come with a 2 year parts & labor warranty.
